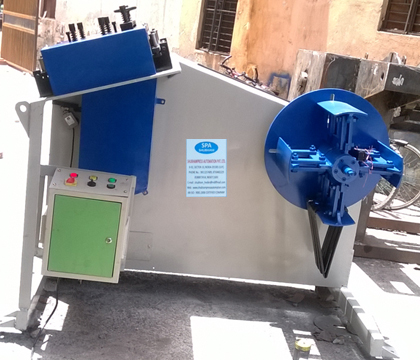

2 IN 1 DECOILER CUM STRAIGHTNER

2 in 1 De-Coiler Cum StraightnerWe are a prestigious manufacturer, exporter and supplier of 2 in 1 Decoiler Cum Straightener. Our range is fabricated by our adroit engineers using choicest raw material and it is available in various models and specifications as per the requirement of our client. This product is appropriate to uncoil and straighten the coil material and it is widely appreciated for features like low maintenance, moisture and corrosion resistant finish and excellent quality.

2-in-1 Decoiler Cum Straightener - Technical Specifications


TYPE

ML-200

ML-300

ML-400

ML-500

ML-600

Max material width (mm)

200

300

400

500

600

Material thickness(mm)

0.5~3

0.5~3

0.5~3

0.5~3

0.5~3

Reducer

1\30

1\30

1\30

1\30

1\30

HP motor

1

2

2

2

2

Pinching roller

OD 60 = 4 Number

OD 60 = 4 Number

OD 60 = 4 Number

OD 60 = 4 Number

OD 60 = 4 Number

Work-Roller

OD 60 = 9 Number

OD 60 = 9 Number

OD 60 = 9 Number

OD 60 = 9 Number

OD 60 = 9 Number

Material i.Dia

450~530

450~530

450~530

450~530

450~530

Material Diameter

25%0

25%0

25%0

25%0

25%0

Max. material width

800

800

25%0

2000

2500
