DECOILER

Our company is a reputed supplier, exporter and manufacturer of Decoiler. Our range is fabricated by our highly skilled and assiduous processionals in adherence with international standards using finest quality raw material which is acquired from renowned dealers. This product is an essential part of fluent operation and comes with various features to fulfill all the requirements of customers.

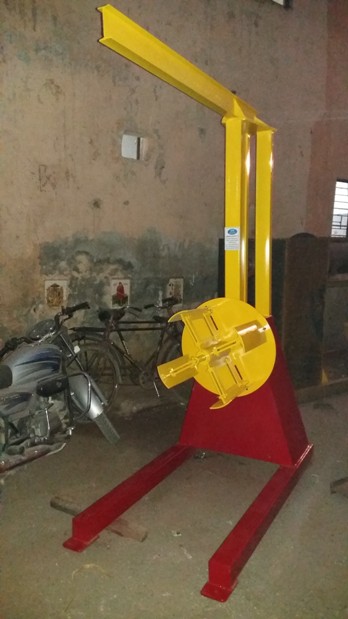

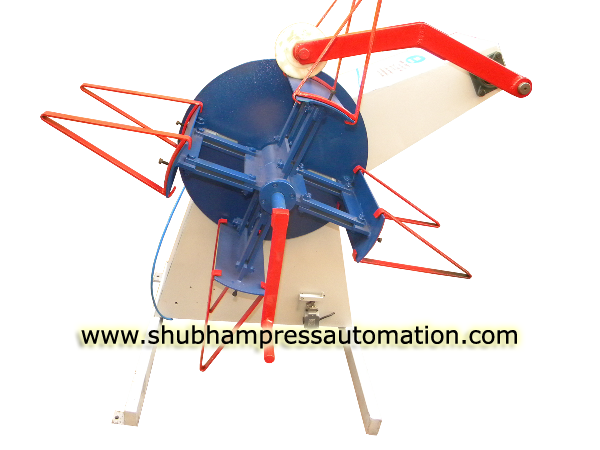

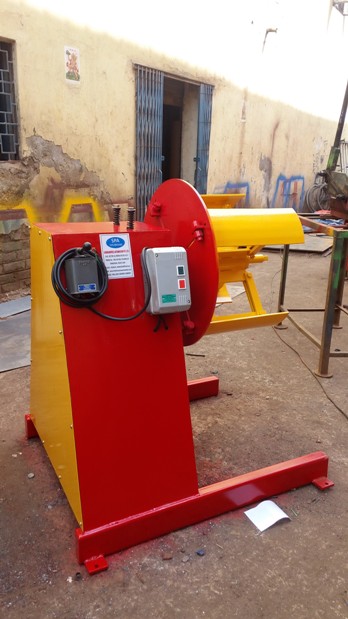

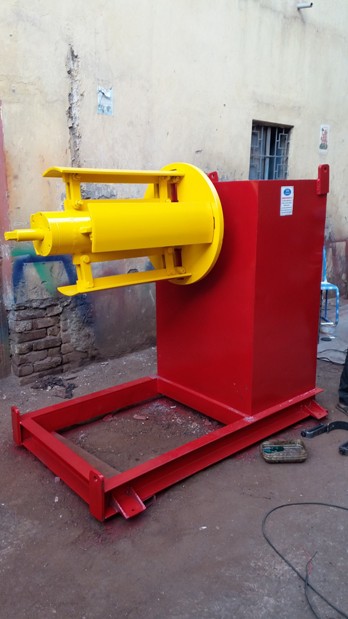

500 KG Decoiler      1.5 TON Decoiler       Decoiler

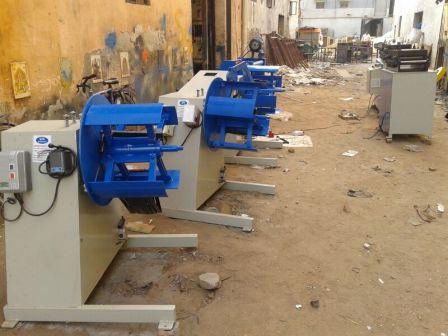

Motorised Decoiler    Decoiler

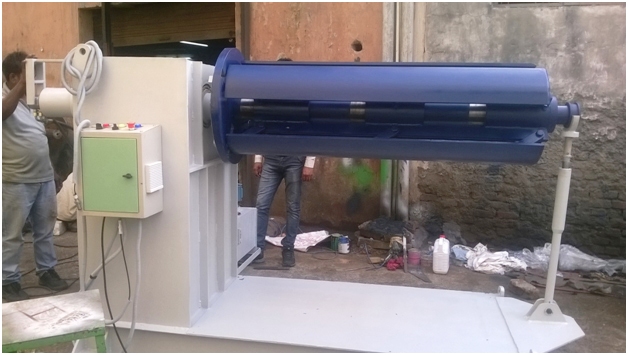

Hydraulic Motorized decoiler 15 Tonne     Double Side Decoiler



Decoiler Features

  • All units are available in non motorized version with drag brake.
  • Electro Magnetic / Pneumatic Brakes.
  • Coil hold-down (hydraulic / pneumatics ) for springy materials.
  • Hydraulic Jaws Expansion.
  • Decoilers with Shafting & Key to load bobbin.
  • Limit arm through limit Switches/Photo sensors.
  • Other Special features on need basis.



Decoiler - Technical Specifications


TYPE (SPA-MDME)

200

300

400

500

600

MATERIAL WIDTH

200

300

400

500

600

MATERIAL THICKNESS

2.5

2.5

2.5

2.5

2.5

MATERIAL I.D.

390-530

390-530

390-530

390-530

390-530

MATERIAL O.D.

1200

1200

1200

1200

1200

MATERIAL WEIGHT

500KGS

800KGS

1200KGS

1500KGS

2000KGS

SPEED OF FEED

15M/MIN

15M/MIN

15M/MIN

15M/MIN

15M/MIN

COIL EXPANSION

MANUAL

MANUAL

MANUAL

MANUAL

MANUAL

MOTOR (HP)

1

1

1

2

2



Decoilers - Technical Specifications


TYPE (SPA-MDME)

700

800

1000

1300

1600

MATERIAL WIDTH

700

800

1000

1300

1600

MATERIAL THICKNESS

2.5

2.5

2.5

2.5

2.5

MATERIAL I.D.

390-530

390-530

390-530

390-530

390-530

MATERIAL O.D.

1200

1200

1200

1200

1200

MATERIAL WEIGHT

3000KGS

3000KGS

5000KGS

5000KGS

5000KGS

SPEED OF FEED

15M/MIN

15M/MIN

15M/MIN

15M/MIN

15M/MIN

COIL EXPANSION

MANUAL

MANUAL

MANUAL

MANUAL

MANUAL

MOTOR (HP)

3

3

5

7.5

10
