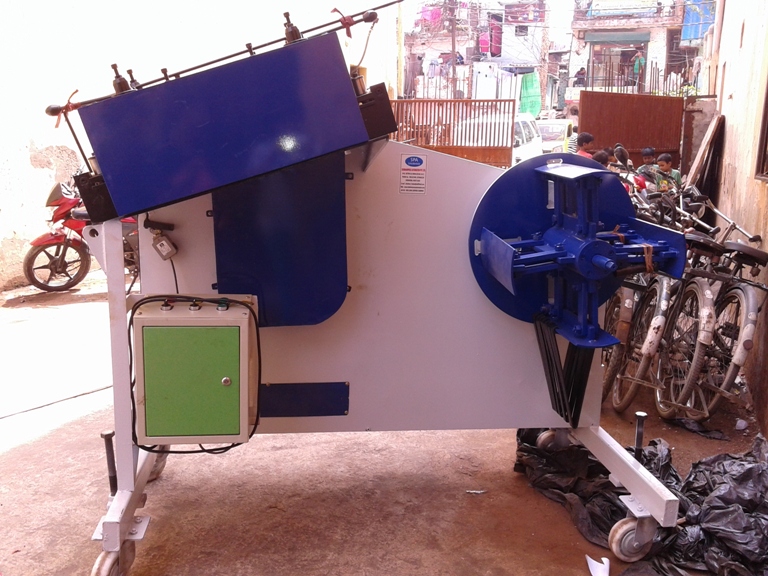

GO TYPE DE-COILER CUM STRAIGHTENER
GO TYPE DE-COILER CUM STRAIGHTENER Features:-
- It saves volume because of integrated with both Straightener and Uncoiler. It automatically adjusts the feeding time with output speed.
- It uses both electric parts and electromagnetic contact leads to increase service life.
- Rolls are made of bearing steel, having quenched, hard-chrome plated and grinded with HRC60 hardness.
- In Normal and High speed operation, Modern frequency converters are used for controls the Variable speed, keeping the straightening in pace, stable feeding.
- Feeding loop distance is reduced by Leveler inclines.
- Highly Rigid and Powerful motorized straightener.
|
MODEL |
WIDTH (mm) |
THICK(mm) |
MATERIAL I.D. |
MATERIAL O.D. |
MATERIAL WEIGHT |
SPEED OF FEED (m/min) |
COIL EXPANSION |
|
SPA-32X200 |
200 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-32X300 |
300 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-32X400 |
400 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-32X500 |
500 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-40X200 |
200 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-40X400 |
400 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-40X600 |
600 |
0.35-1.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-60X200 |
200 |
1.0-2.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-60X300 |
300 |
1.0-2.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-60X400 |
400 |
1.0-2.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-60X500 |
500 |
1.0-2.5 |
425-550 |
1200 |
1000Kg |
18 |
MANUAL |
|
SPA-80X200 |
200 |
1.0-4.5 |
425-550 |
1200 |
2500Kg |
18 |
MANUAL |
|
SPA-80X300 |
300 |
1.0-4.5 |
425-550 |
1200 |
2500Kg |
18 |
MANUAL |
|
SPA-80X400 |
400 |
1.0-4.5 |
425-550 |
1200 |
2500Kg |
18 |
MANUAL |
|
SPA-80X500 |
500 |
1.0-4.5 |
425-550 |
1200 |
2500Kg |
18 |
MANUAL |
